Description
Specifications:

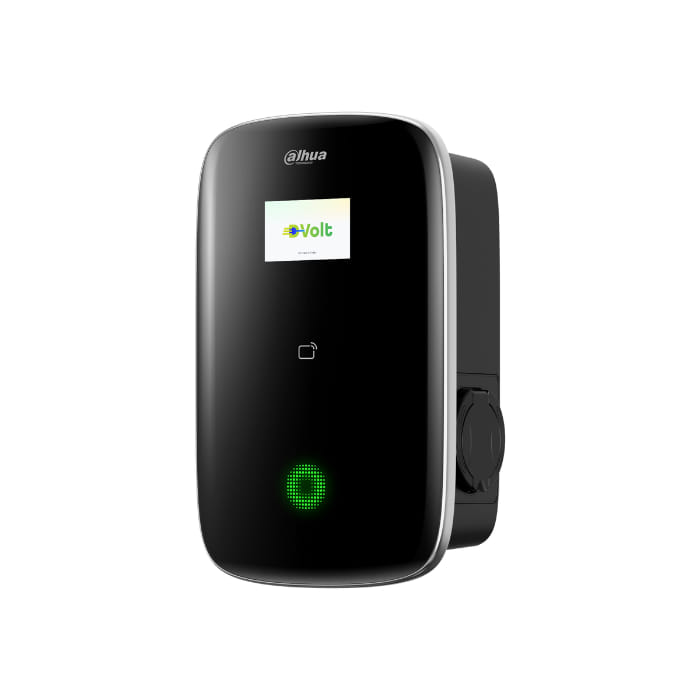

- AC charger with Type 2 socket (cable not included)
- Max power: 22kW using 3-phase
- Power supply: 400V, 3 x 32A max
- Charging current adjustable from 6A to 32A
- Charging port: Type 2 (IEC 62196), Mode 3 (IEC 61851)
- 4.3 inch LCD display
- Built-in MID-certified energy meter
- Connectivity: RFID, Bluetooth, Wi-Fi, Ethernet, 4G
- Start charging with Plug & Play, RFID card or mobile app
- Communication: OCPP 1.6J
- Built-in 30mA Type A RCD and 6mA DC leakage protection, PEN protection
- Protection rating: IP55, IK10
- Operating temperature: -30°C to +50°C
- Dimensions: 443 x 273 x 171.5 mm, weight 6 kg
- Wall or pole mounting
- Warranty: 3 years
-> Download Datasheet: Dahua D-Volt Pro datasheet
